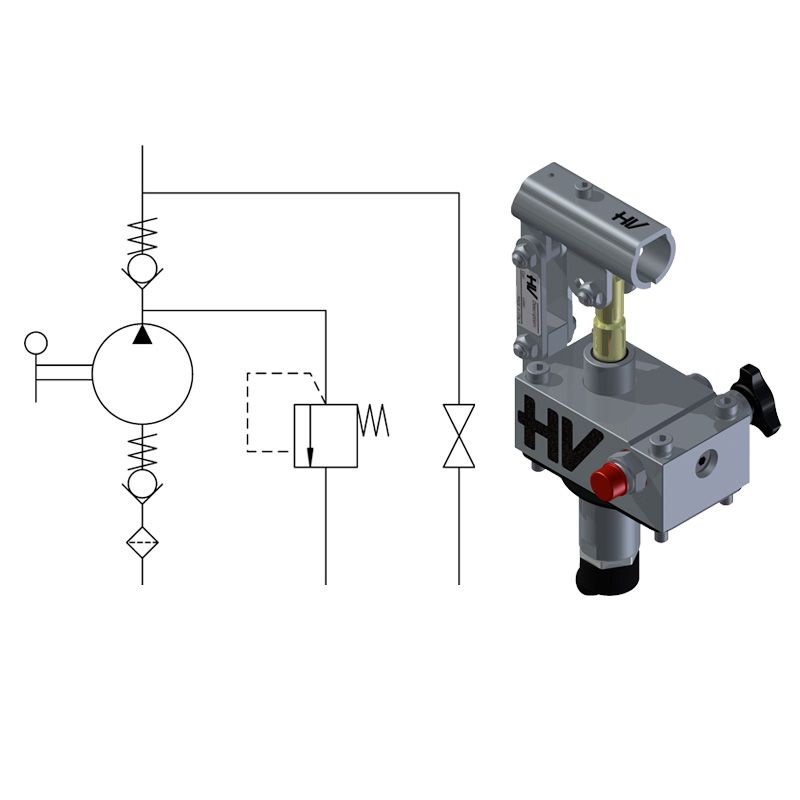

Stainless steel AISI 316 pump body.
Stainless steel AISI 630 piston rod with Niploy coating (50 µm).
Lever connection Ø 27.
Stainless steel AISI 316 external parts.
Oil tank mounting kit including.
Pressure relief valve standard setting: 100 bar.
Equipped with non return valve on the outlet port.
Triple sealing system made to prevent any oil leakage and sweating onto the piston rod.
Assembling to tank.
Displacement: 12 - 25 cc.
