VBCD DE - Double Overcentre Valves

Oleodinamica Marchesini В наличии
Код V0420 Тип VBCD 3/8” DE Цена €75.79 Количество
Код V0420/RP18 Тип VBCD 3/8“ DE RP 1:8 Цена €82.94 Количество
Код V0430 Тип VBCD 1/2” DE Цена €78.65 Количество
Код V0430/RP18 Тип VBCD 1/2“ DE RP 1:8 Цена €87.23 Количество
Код V0431 Тип VBCD 3/4” DE Цена €120.12 Количество
Код V0431/RP18 Тип VBCD 3/4“ DE RP 1:8 Цена €131.56 Количество

Use and Operation
These valves are used to control actuator’s movements and block in both directions in order to have a under control descent of a load; load’s weight doesn’t carry it away, as the valve prevents any cavitations of the actuator.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

Applications

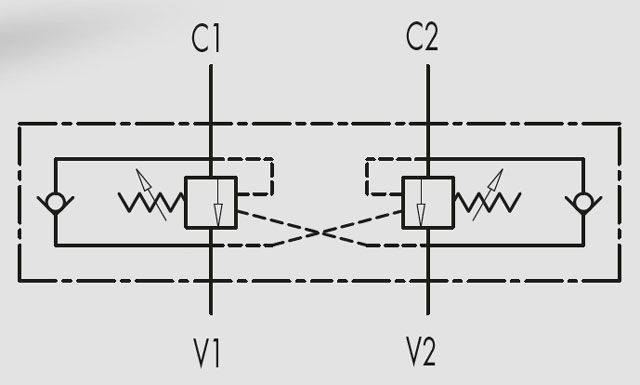

Connect V1 and V2 to the pressure flow, C1 and C2 to the actuator to be controlled. In-line mounting.

On Request

  • other settings available
  • pilot ratio 1:8 ( specify CODE/RP18)
  • sealing cap (CODE/P) and arranged for sealing cap (CODE/PP)
