Use and Operation
This valve enables to keep “P” flow constant to a certain setting, independently of the required pressure or the inlet flow of the valve. Exceeded flow is drained directly in T (tank).
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: by diameter combination. Minor leakage (few drops per minute)
Applications

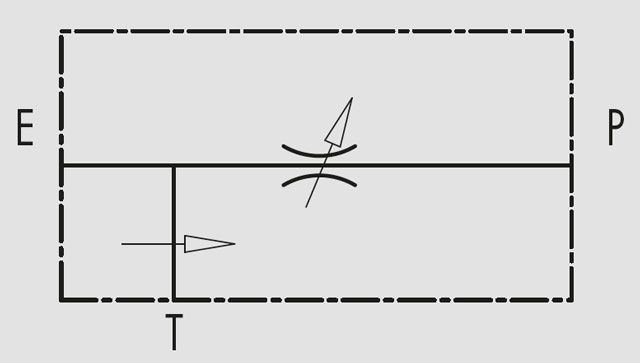

Connect E to the pressure flow and P to the net where flow adjustment is needed. Connect T to the tank. To adjust in let pressure in P screw in or off hand wheel after loosening the locknut.
