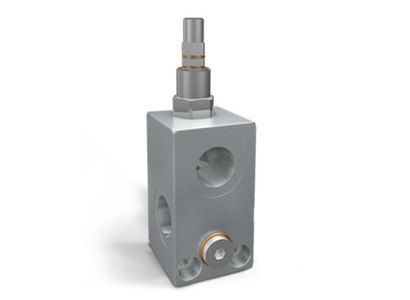

VMP - Relief Valves

Oleodinamica Marchesini In Stock
Code V0700/180 Type VMP 3/8" 10-180 BAR Price €20.02 Quantity
Code V0710/180 Type VMP 1/2" 10-180 BAR Price €22.88 Quantity
Code V0720/180 Type VMP 3/4" 10-180 BAR Price €30.03 Quantity
Code V0700/T… Type VMP 3/8" TARATE/SET … BAR Price €22.88 Quantity
Code V0710/T… Type VMP 1/2" TARATE/SET … BAR Price €25.74 Quantity
Code V0720/T… Type VMP 3/4" TARATE/SET … BAR Price €32.89 Quantity
Code V0700/V180 Type VMP 3/8" VOLANTINO/HANDKNOB Price €21.45 Quantity
Code V0710/V180 Type VMP 1/2" VOLANTINO/HANDKNOB Price €27.17 Quantity
Code V0720/V180 Type VMP 3/4" VOLANTINO/HANDKNOB Price €31.46 Quantity
Code V0700/P… Type VMP 3/8" PIOMBATE/SEALING CAP … BAR Price €24.31 Quantity
Code V0710/P… Type VMP 1/2" PIOMBATE/SEALING CAP … BAR Price €27.17 Quantity
Code V0720/P… Type VMP 3/4" PIOMBATE/SEALING CAP … BAR Price €35.75 Quantity
Code V0700/PP180 Type VMP 3/8" PRED.PIOMB./PRED.SEALING CAP 10-180 B. Price €22.88 Quantity
Code V0710/PP180 Type VMP 1/2" PRED.PIOMB./PRED.SEALING CAP 10-180 B. Price €25.74 Quantity
Code V0720/PP180 Type VMP 3/4" PRED.PIOMB./PRED.SEALING CAP 10-180 B. Price €32.89 Quantity

Use and Operation
The relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve open allowing pressure relief in order not to exceed this setting.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

Applications

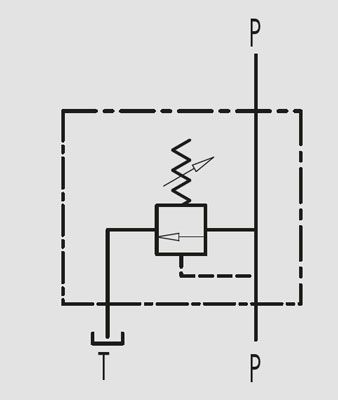

Connect circuit port with pressure to P and tank port to T. Port P is reversible..

On Request

  • different setting range
  • other setting available (CODE/T: please specify the desired setting)
