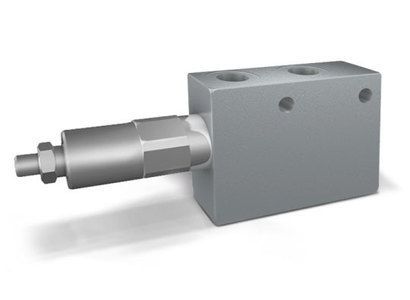

VRP - Pressure Reducing Valve, Direct Acting Poppet

Use and Operation
This valve allows to preserve constant the pressure downstream, regardless of the upstream pressure.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type:  70 cc/min (350 Bar to port P)

Applications

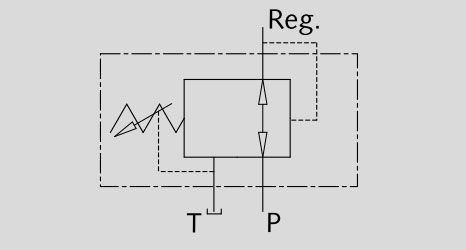

Connect P to the main circuit, the port Reg. to the circuit where you want to reduce pressure and port T to the tank.
