Use and Operation
These valves are used to open or close oil flow in a circuit even with maximum pressure.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: any leakage
Applications

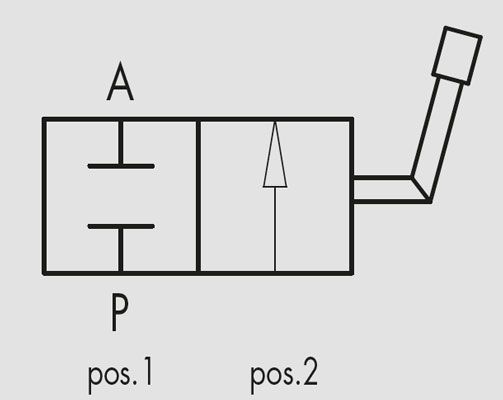

Connect indifferently A or P to the ports where flow has to be blocked. Flow is blocked with lever at 90° (position 1) and free with lever in line (position 2).
On Request
- fixing holes (CODE/FF)
- NPT thread (code VN… instead of V0… example: RS 2 VIE ¼” NPT code = VN830)
