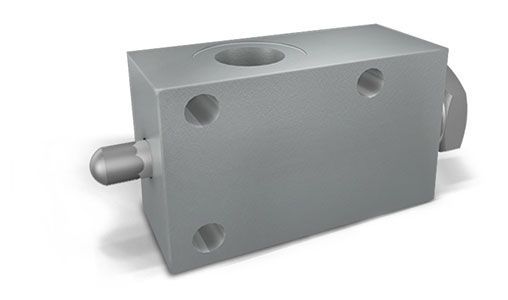

VF-NC - Pushbuttom End Stroke Valves, Normally Closed

Oleodinamica Marchesini In Stock
Code V0827 Type V - 101 3/8” NC Price €50.05 Quantity
Code V0828 Type V - 121 1/2” NC Price €51.48 Quantity
Code V0829 Type V - 201 3/4” NC Price €85.80 Quantity

Use and Operation

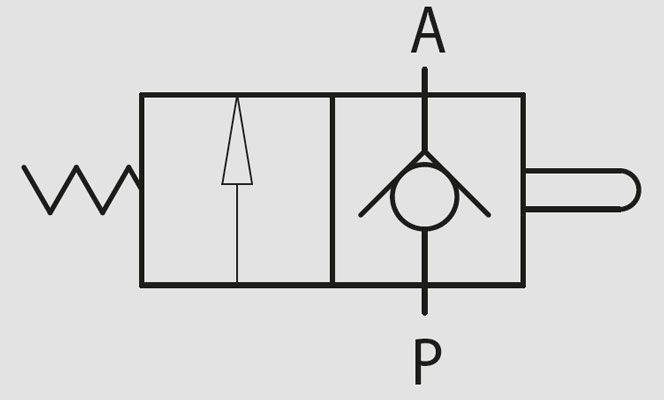

This valve allows oil passage in a hydraulic circuit (normally closed valve). Once the slider is set into action, oil flow is free from P to A. It can be used:

  • to set the sequence of 2 actuators;
  • as end strokes valve, where flow is directly connected to the tank.

Materials and Features

  • Body: steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications
Connect A directly to the tank and P as for necessity. Mounting scheme can vary according to the use.
