Use and Operation
Made up by 1 double pilot check valve together with one double cross relief valve, this valve enables to block the actuator in one position and to limit inlet pressure to the actuator.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: minor leakage
Applications

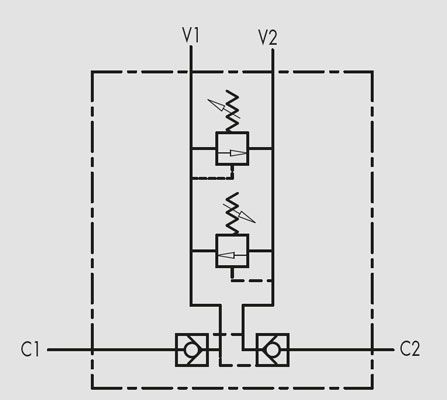

Connect V1and V2 to the pressure flow and C1 and C2 to the actuator.
On Request
- other setting available (CODE/T: please specify the desired setting)
