Use and Operation

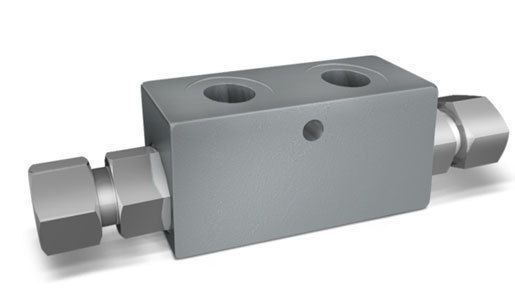

Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.They are easily assembled on a cylinder. We supply on request fittings kit for mounting on cylinders with a specific centre distance.
Materials and Features
- Body: zinc-plated steel
- Internal Parts: hardened and ground steel
- Seals: BUNA N standard
- Poppet Type: any leakage
Applications

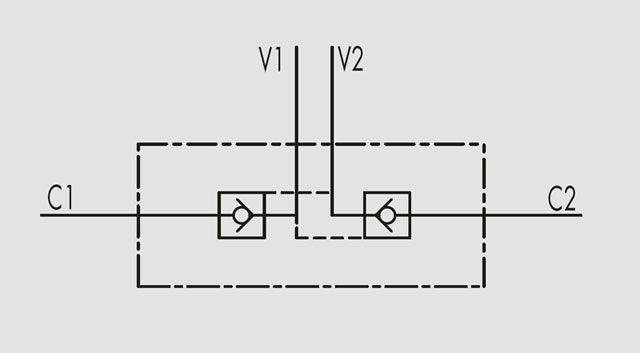

Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator with a banjo
On Request
- without seal on pilot piston
- hardened and ground steel
- 1 Bar spring
- 8 Bar spring
