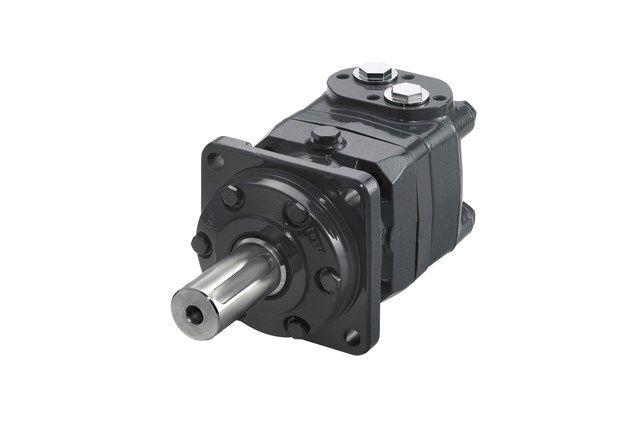

151B3003 - OMT 315-ALB.CIL.Ø40 - Danfoss

Danfoss In Stock

Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency.Long durability at high pressure. OMT has internal flush valves.

Mounting Flange Standard - PD 125 mm ; BC160 mm
Shaft Style Cylindrical
Shaft Size 40 mm
Shaft Key A12 x 8 x 70 mm (DIN 6885)
Port Style Side port
Port Dimension G 3/4
Drain Port Style Standard
Drain Port Dimension G 1/4
Painted None
Geometric Displacement 326,3 [19.91]
Max Inlet Pressure Cont 210 [3050]
Max Inlet Pressure Int 250 [3630]
Max Inlet Pressure Peak 300 [4350]
