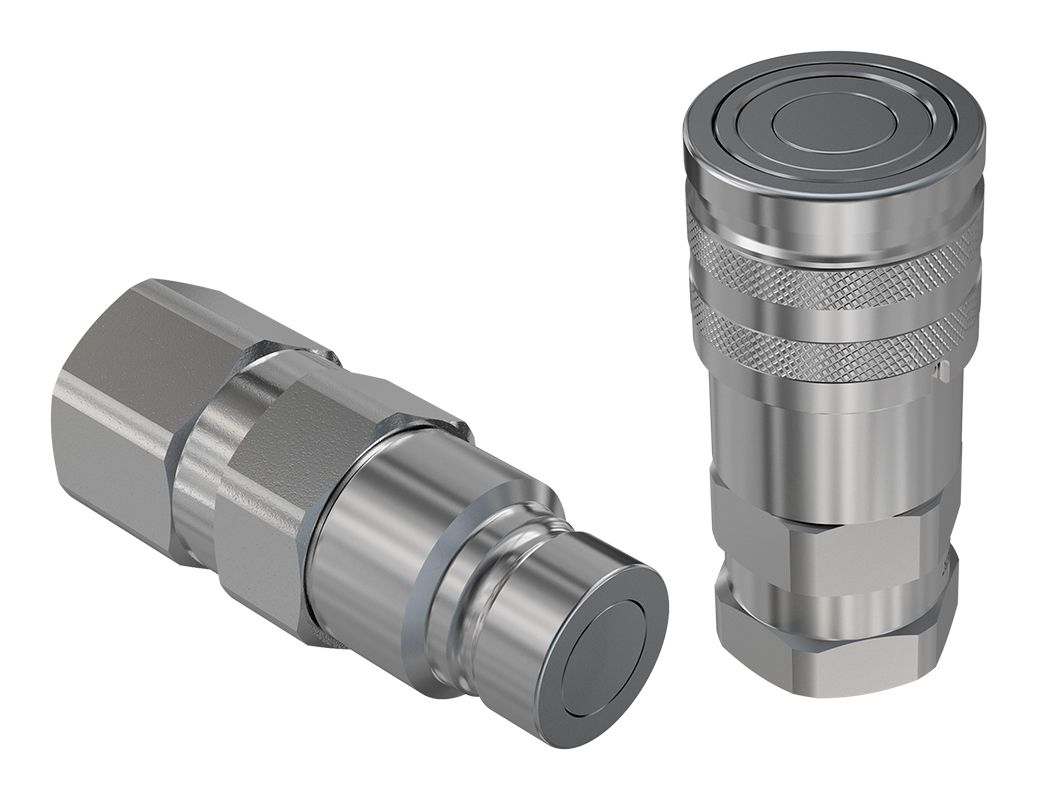

FFI12 GAS M 2V

Name: FFI12 GAS M 2V
Brand: Faster
SKU: 6201
Price: €69.00 EUR
Availability: InStock
Rating: 4.4 (1 reviews)

Faster

In Stock

Specs
Flow Rate:    100 (l/min) at 0.2 MPa
Temperature:    -20 °C to 200 °C
Seals:    FKM
Weight:    298 g

Dash Size	Size (mmInch)	Working Pressure	Flow Rate (l/mingal/min)	Spillage (ml)	Force to connect (N)	Male Burst pressure	Female Burst pressure	Male + Female Burst pressure
04	6.3 1/4"	25 MPa 3625.943 psi	20 5.283	0.006	95	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
06	10 3/8"	25 MPa 3625.943 psi	45 11.888	0.008	115	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
08	12.5 1/2"	25 MPa 3625.943 psi	100 26.417	0.01	220	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
12	20 3/4"	25 MPa 3625.943 psi	160 42.268	0.02	215	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
16	25 1"	25 MPa 3625.943 psi	210 55.476	0.03	280	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774	100 MPa 100 14503.774 psi 14503.774
